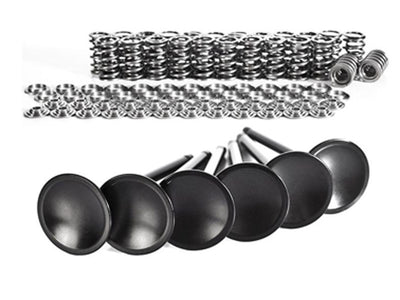

3.2L VR6 PERFORMANCE ENGINE VALVES

Push your VW VR6 24V cylinder head to the limits with Supertech Performance engine valves. Supertech combines over 30 years of racing experience with state of the art equipment and manufacturing processes to bring you strong and reliable valve options for your race or street engine build.

LEADING FEATURES

• Improved airflow via application-specific CNC machining
• Maximized fatigue resistance and tensile strength
• Valve tip is hardened beyond 52HRc
• Strict dimensional tolerances for improved sealing
• Superfinished to reduce surface roughness
• Optimized high flow rate designs

WHAT IS A PERFORMANCE VALVE?

Valves play a critical role in any performance orientated engine. Upgrading the valves in your VW or Audi engine increases reliability with slow forging processes, upgraded aerospace alloys, CNC machining, and heat treatments to withstand extreme abuse from high-powered race engines and daily driven road vehicles making beyond factory power levels. The power an engine produces is limited to airflow. As the smallest chokepoint in your cylinder head, performance valves are engineered to increase airflow by limiting turbulence created by valve stem obstruction and careful detailing of the valve head and valve angles.

INCLUDED AMOUNT OF VALVES:

• Requires 6 intake long valves*
• Requires 6 intake short valves*
• Requires 6 exhaust long valves*
• Requires 6 exhaust short valves*

INCLUDED SINGLE GROOVE VALVE KEEPERS

Supertech’s R32 VR6 valves feature “radial-style” single groove on the valve stem and require matching single groove valve keepers. Single groove valves are preferred for performance orientated and race engines as the top part of the groove provides a cushion for the lock and aids in valve stem protection against uncontrolled and excessive valve movement. In addition, the single groove design greatly extends valve stem life by restricting rotation of the valve preventing accelerated wear by excess movement caused by the factory triple groove design. Sold individually, 2 keepers required per valve

INCLUDED AMOUNT OF KEEPERS:

All R32 VR6 Engines: 24 keepers are included for intake and/or exhaust (48 required for a full engine, intake & exhaust)*

VALVE STEM SEALS

Match your performance valves to a set of Supertech Valve Stem Seals. Manufactured from heat resistant Viton for use with the exhaust valves and high-quality polyacrylic for intake valves. These superior quality materials ensure longer valve seal life on higher output engines producing beyond stock power levels.

INCONEL VALVES (EXHAUST)

Supertech’s Inconel exhaust valves are manufactured from a nickel-based alloy material providing incredible temperature distribution that lowers temperatures across the entire cylinder head. Iconel valves are perfect for engines that reach very high exhaust gas temperatures from large frame turbo engines found in both street and race applications.

VALVE TECHNICAL SPECS

Short Intake Valves
Head Diameter: 33.15mm
Stem Diameter: 5.97mm
Overall Length: 102.50mm
Single-Groove (requires valve keepers)

Long Intake Valves
Head Diameter: 33.15mm
Stem Diameter: 5.97mm
Overall Length: 136.40mm
Single-Groove (requires valve keepers)

Short Exhaust Valves
Head Diameter: 30.20mm
Stem Diameter: 5.96mm
Overall Length: 102.58mm
Single-Groove (requires valve keepers)

Long Exhaust Valves
Head Diameter: 30.15mm
Stem Diameter: 5.96mm
Overall Length: 136.10mm
Single-Groove (requires valve keepers)
