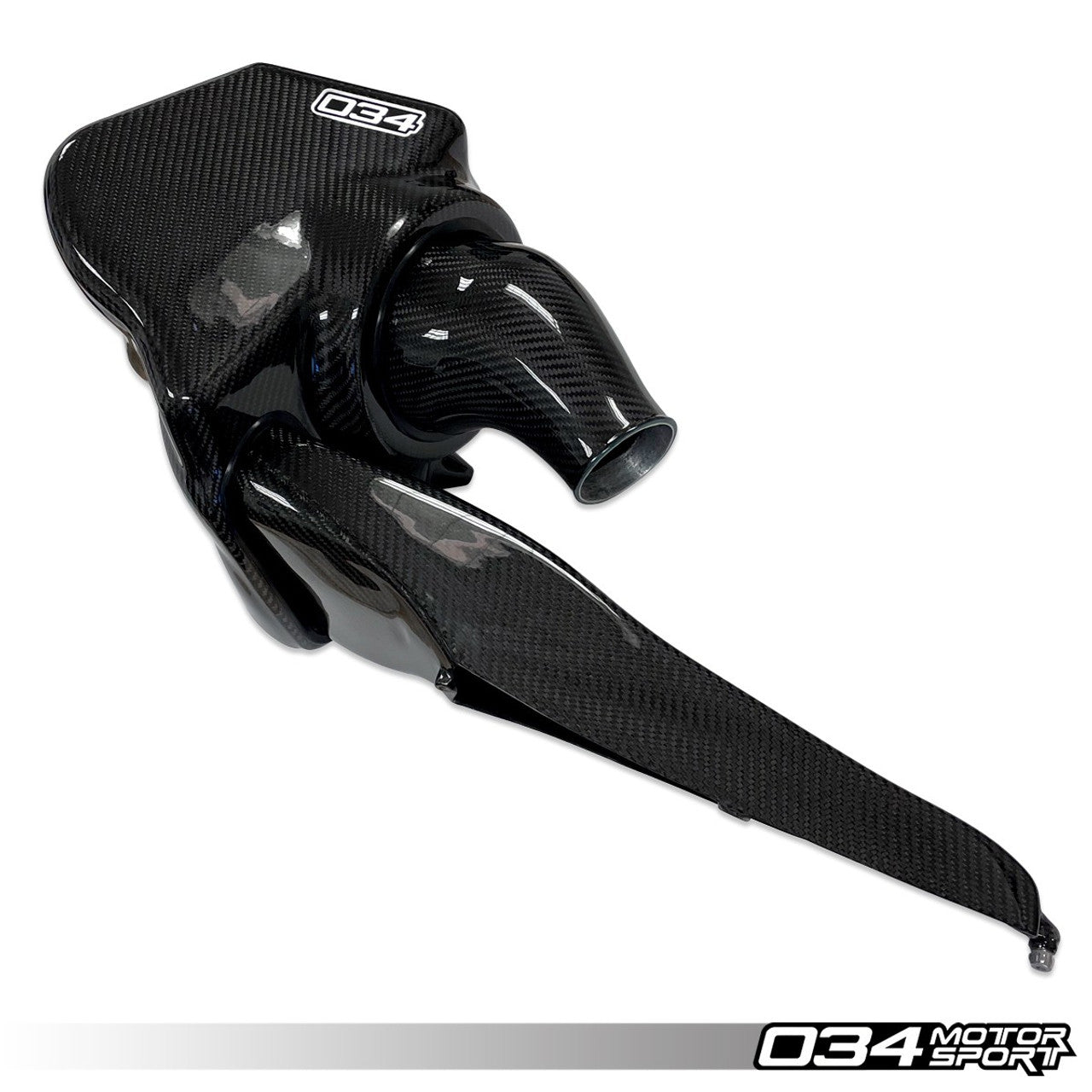

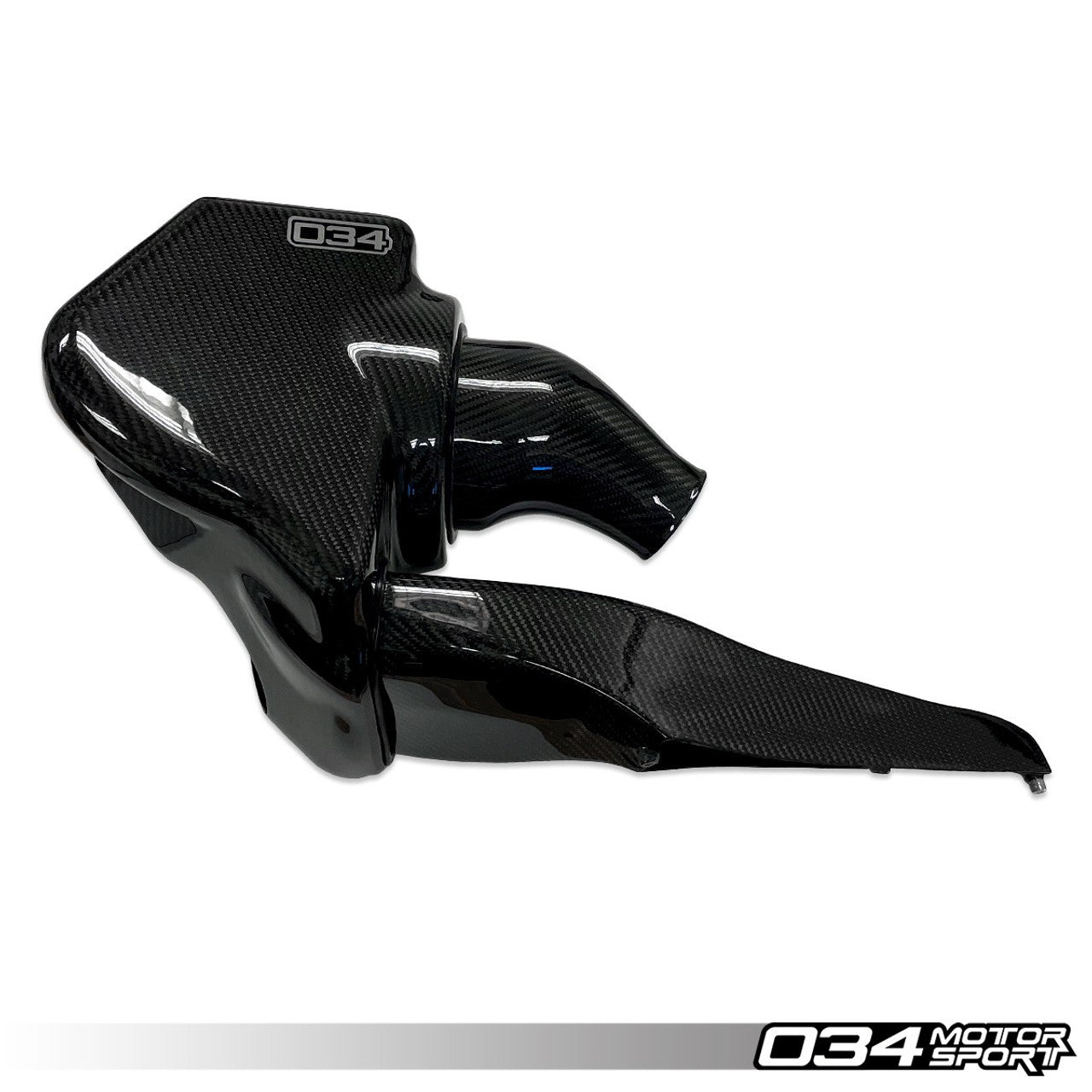

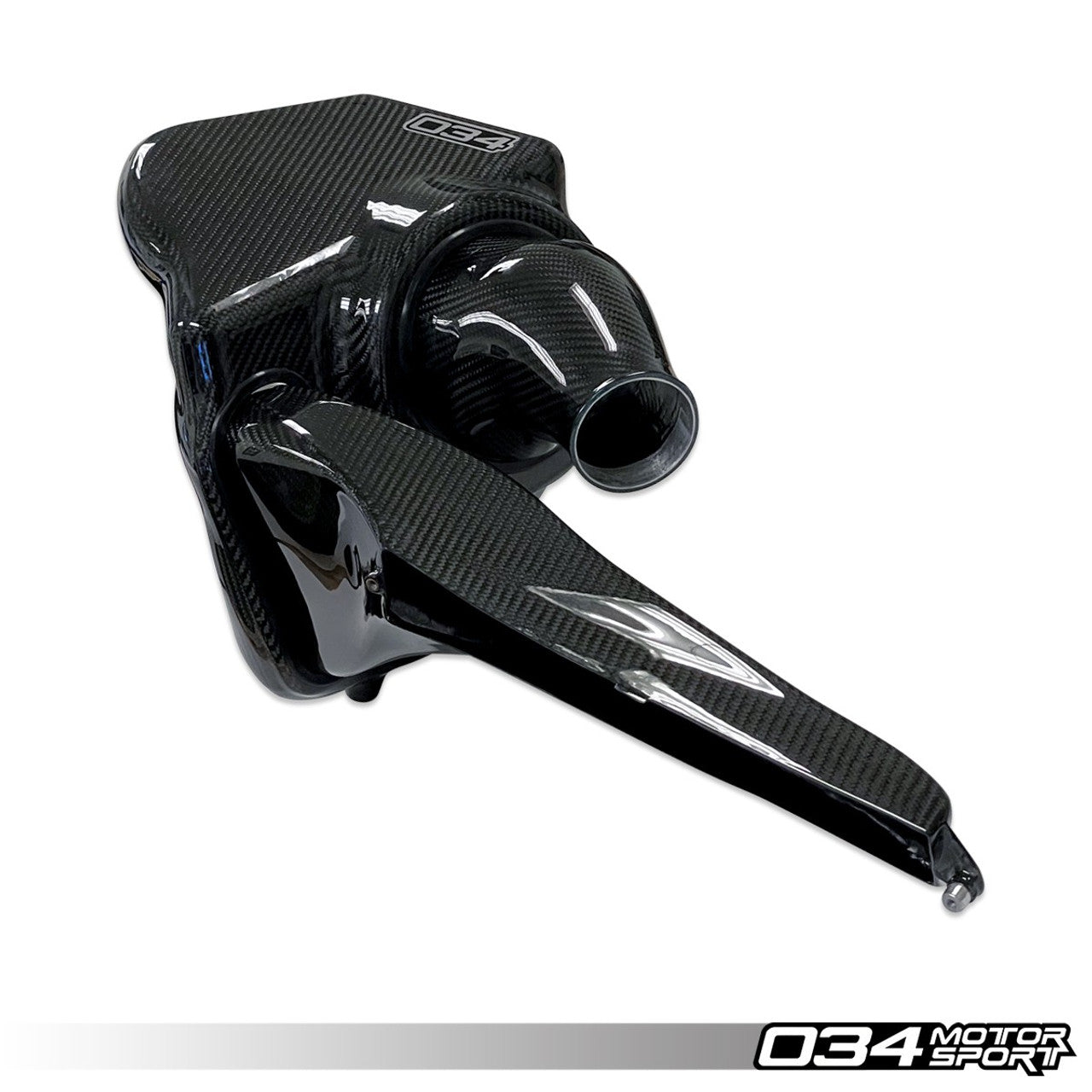

034Motorsport X34 Carbon Fibre RS5 B9 2.9 TFSI Full Intake System - RS5 B9 2.9 TFSI

034Motorsport focuses on optimizing every aspect of the intake system across a broad range of variables and compromises. A critical component of a high-flowing performance intake is the ability for air to flow around and into the filter. If the air cannot flow freely around the filter, it will be restricted from getting into it. Many aftermarket kits fit too large of a filter in an enclosure that cannot accommodate its size, thus choking the filter and reducing its overall flow. This often happens when a product is engineered for one variable at the expense of others. 034Motorsport conducted extensive tests and refined its development of the intake design to allow for maximum airflow surrounding the air filter, allowing for optimal airflow to, and through, the filter. The final result is the right size filter in the right size filter housing, creating maximum airflow and performance with OEM level filtering; the ultimate goal of any intake system. Be cautious of any intake that brags only of air filter size without taking into account the detrimental effects of shrouding the filter.

Significant effort went into developing this comprehensive performance intake solution for the twin-turbocharged 2.9 TFSI engine found in the latest generation B9 Audi RS5. Subsequently, the Fiber Full Intake System offers discerning enthusiasts measurable increases in horsepower and torque, sporty induction and turbocharger sounds, and a beautiful carbon fiber airbox and inlet pipe design.

Throughout the development process, multiple designs were modeled, prototyped, and tested - all to ensure that the X34 Carbon Fiber Full Intake System delivers measurable performance benefits and superb fitment. The result is a partially-enclosed airbox which uses the factory fresh air inlet duct and heat shield, while housing a massive 5" inlet conical air filter, and a matching CFD-optimized carbon fiber filter tube.

 FIBER FULL INTAKE SYSTEM FEATURES

• Developed In-House by 034Motorsport's Engineering Team
• Fits Both Left and Right Hand Drive Configurations
• High-Quality Carbon Fiber Air Duct, Airbox, and Filter Tube Construction
• High-Gloss Epoxy Finish
• OEM+ Fit and Finish
• High Strength Metal Inner Ring at Clamp Points
• Dyno-Proven Horsepower Torque Gains
• Improved Airflow from Factory Airbox and Intake Tube
• Enhanced Engine Induction Sounds
• Improved Throttle Response
• Massive 5" Inlet Conical Pleated Cotton Air Filter
• Large-Diameter CFD-Optimized Carbon Fiber Filter Tube
• Reduced Intake Air Temperature
• Securely Installs Using Factory Mounting Grommets
• Simple, Straightforward Installation Instructions
• 034Motorsport X34 Carbon Fibre

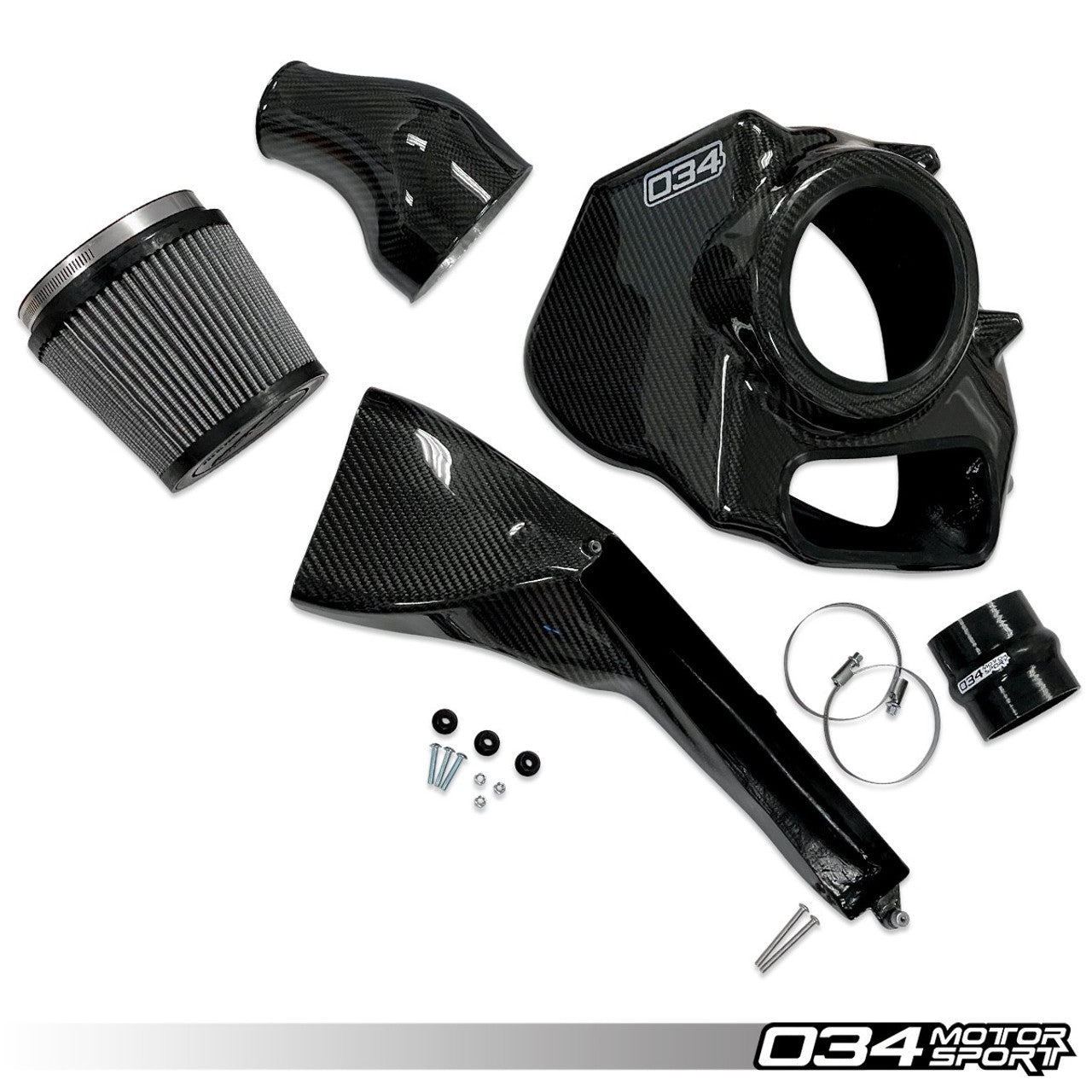

WHAT’S INCLUDED

• 034Motorsport Carbon Fiber Airbox
• 034Motorsport Carbon Fiber Inlet Pipe
• 034Motorsport Carbon Fiber Intake Duct
• 034Motorsport High Performance 5" Inlet Air Filter
• 034Motorsport Silicone Hose

APPLICATION GUIDE

• 2018 - Present Audi RS5 (B9) 2.9 TFSI
